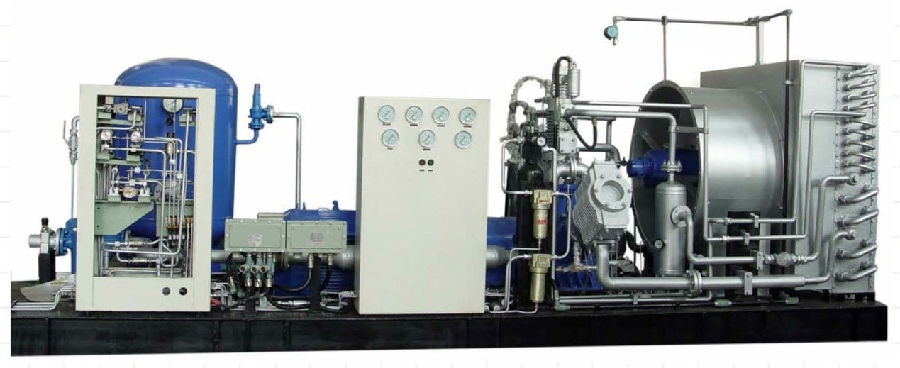

Features of W series natural gas bottle filling compressor

1. Inlet pressure range: 0-4.0Mpa

2 Processing gas volume: 280NM/h-2500Nm/h

3: Control mode: a. Fully automatic/semi-automatic/manual

b, pneumatic control gas source: natural gas/air

4. Cooling methods can be divided into: air cooling/water cooling/mixed cooling (choose according to actual needs)

5. Lubrication method: oil injection lubrication

Overall structure: fixed, mobile, skid-mounted, soundproof shelter, etc. (choose according to actual needs)

In addition to the functions of a standard station, the CNG mother station also fills the compressed natural gas into a high-pressure gas transport semi-trailer (referred to as a semi-trailer) through the filling column set in the station, and transports it to the filling sub-station to refuel the car. At the same time, as an effective supplement to pipeline gas transmission, in small and medium-sized cities far away from natural gas pipelines, semi-trailers can be used to transport compressed natural gas to the city where it is used by road transportation. After pressure adjustment, it enters the gas pipeline network to provide residents and Other natural gas users supply gas.

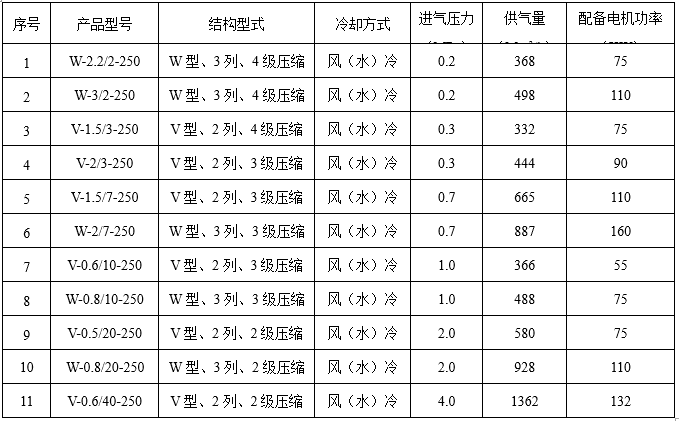

Technical performance parameters of natural gas compressors
