The main equipment of CNG filling station is composed of compressor unit, metering device, gas purification dryer, gas storage device, charging sequence control panel, gas column, gas vending machine and so on. According to different functions, it can be divided into three types: standard station, refueling mother station and refueling sub-station.

The standard station takes gas directly from the gas pipeline network, and after a series of processes such as pretreatment system, compression, and storage, refills the car through a gas vending machine.

In addition to the functions of a standard station, the CNG mother station also fills the compressed natural gas into a high-pressure gas transport semi-trailer (referred to as a semi-trailer) through the filling column set in the station, and transports it to the filling sub-station to refuel the car. At the same time, as an effective supplement to pipeline gas transmission, in small and medium-sized cities far away from natural gas pipelines, semi-trailers can be used to transport compressed natural gas to the city where it is used by road transportation. After pressure adjustment, it enters the gas pipeline network to provide residents and Other natural gas users supply gas.

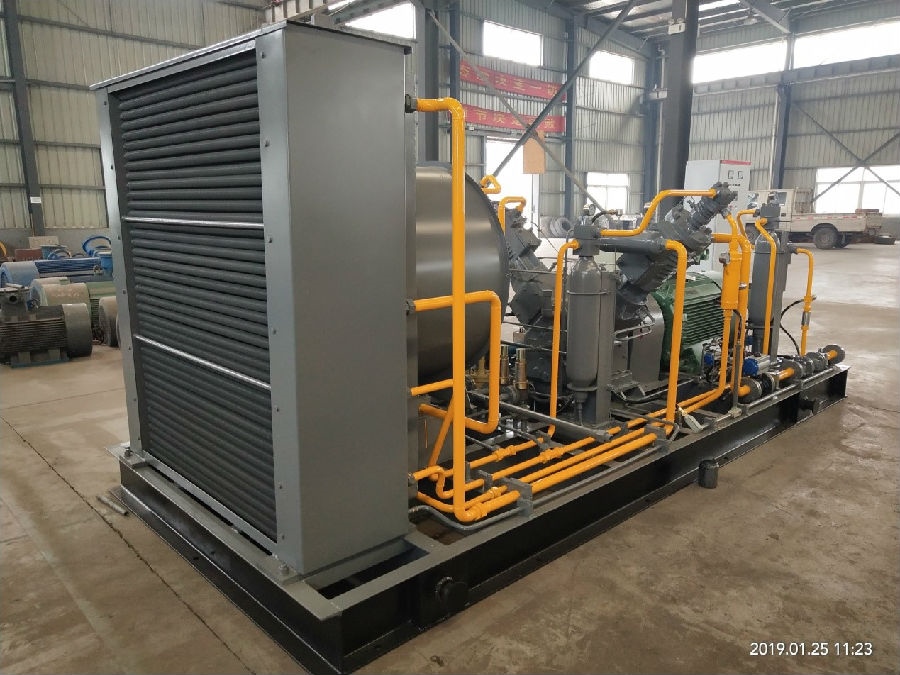

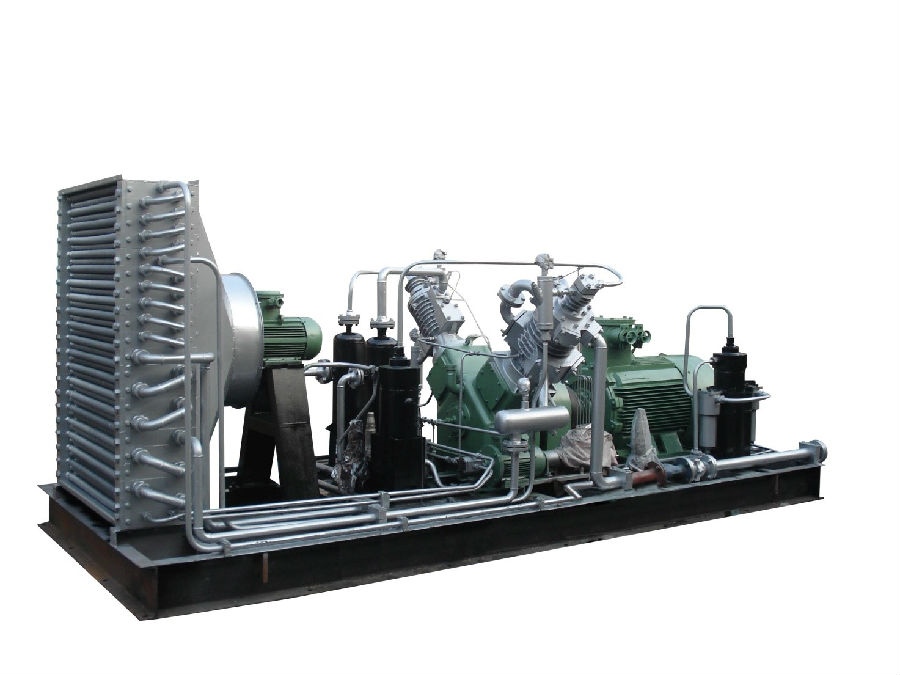

Features of V series natural gas bottle filling compressor:

1. Inlet pressure range: 0.1～4.0Mpa

2. Gas capacity: 250Nm3/h～2500Nm3/h

3. Control mode: a. Fully automatic/semi-automatic/manual

b. Pneumatic control gas source: natural gas/air

5. Cooling methods can be divided into: air cooling/water cooling/mixed cooling

6. Lubrication method: oil injection lubrication

The company can independently design, manufacture, and produce various compressors according to user requirements, and provide users with high-quality pre-sales, in-sales, and after-sales services.

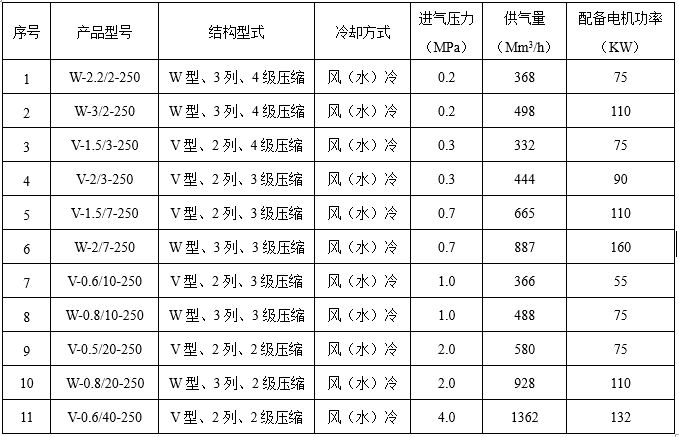

Detailed technical parameters of V-0.76/10-250 natural gas bottle filling compressor:
